Flat High Speed Cable Metal Bobbin/Reel/Spool
Strandard GB4004-83,JB/T8997,4-1999, DIN46395/DIN46397
Application

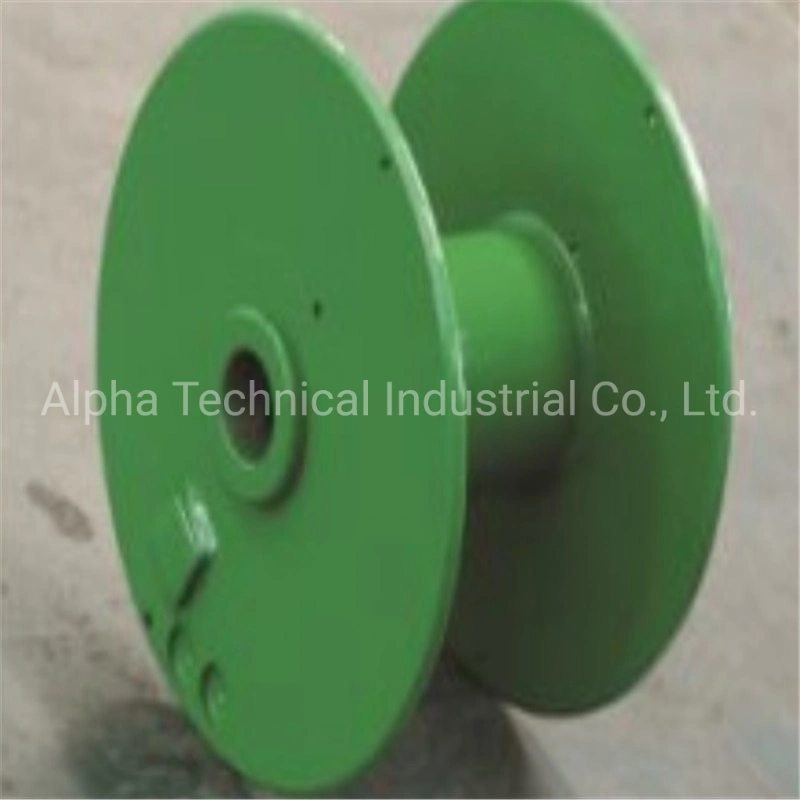

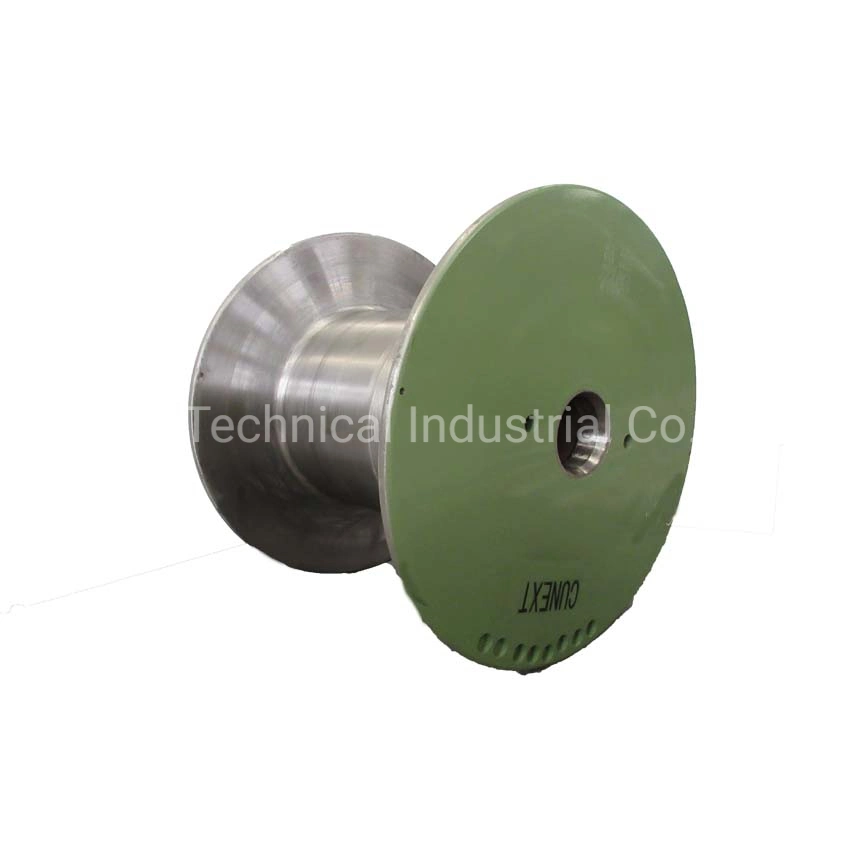

Steel bobbin with massive flanges/barrel/bore and hub.
Dimension either according to customers specification
Dynamically balanced for speed from 25m/s--50m/s
For cable,ferrous and non-ferrous wire.
For drawing, stranding and bunching machines
Bobbin parameter
| Type Specification | d1 | d2 | d4 | d5 | L1 | L2 | e | V1dm³ |
| 200 | 200 | 112 | 36 | 16 | 150 | 125 | 40 | 2.69 |
| 250 | 250 | 157 | 56 | 16 | 190 | 160 | 50 | 4.75 |
| 300 | 300 | 217 | 125/127 | 18 | 290 | 270 | 90 | 9.09 |
| 315 | 315 | 217 | 125/127 | 18 | 290 | 270 | 90 | 11.05 |
| 355 | 355 | 217 | 125/127 | 18 | 290 | 270 | 90 | 16.73 |
| 400 | 400 | 165 | 70 | 16 | 270 | 250 | 50 | 26.09 |
| 217 | 125/127 | 18 | 300 | 280 | 90 | 24.82 | ||
| 500 | 500 | 217 | 70 | 20 | 320 | 320 | 50 | 47.78 |
| 250 | 125/127 | 28 | 375 | 315 | 100 | 44.1 | ||
| 630 | 630 | 355 | 125/127 | 28 | 475 | 400 | 100 | 86.2 |
| 800 | 800 | 399 | 125/127 | 40 | 536 | 500 | 160 | 188.4 |
Other relevant bobbins that we can supply, such as double layer high speed bobbin, flat high speed bobbin, PN punching bobbin, PND punching bobbin, Metal flange process bobbin, enhanced type machine bobbin, corrugated bobbin, reinforced corrugated bobbin etc.
Package pictures
Certification
Our company & service:
Our company is a specialized spools manufacturer and become Chinese leader for quality and service in few years.
We located in Wuxi city which has long history and full of wonderful sceneries. Our high standard workshops and office, first class equipment lines and complete inspect facilities, advanced management and quality control philosophy to fulfill all customers' requirements.
Our products are widely used in the field of high voltage, middle & low voltage, XLPE, power cables, optical fiber cables, telecommunication cables, steel wires & ropes as well as in the textile industry. Products are sold well in domestic market and have been exported to Europe and the United States, Australia, Southeast Asia, Middle East and win good response from our customers continuously. We hold the idea of "Pursue and Produce Outstanding, Customer First", to provide great service to the customers and lead national reels industry to involve in the reels production worldwide.
Enable us send you accurate bobbin offer. pls kindly send us the following information:
1. Bobbin drawing if you have.
2. Application(Which equipment will this bobbin use along with?)
3. Winding wire material and diameter?
4. Bobbin Quantity you need. For big quantities, bobbin price will be lower.
5. Profile Carrying Capacity(how many tons)
